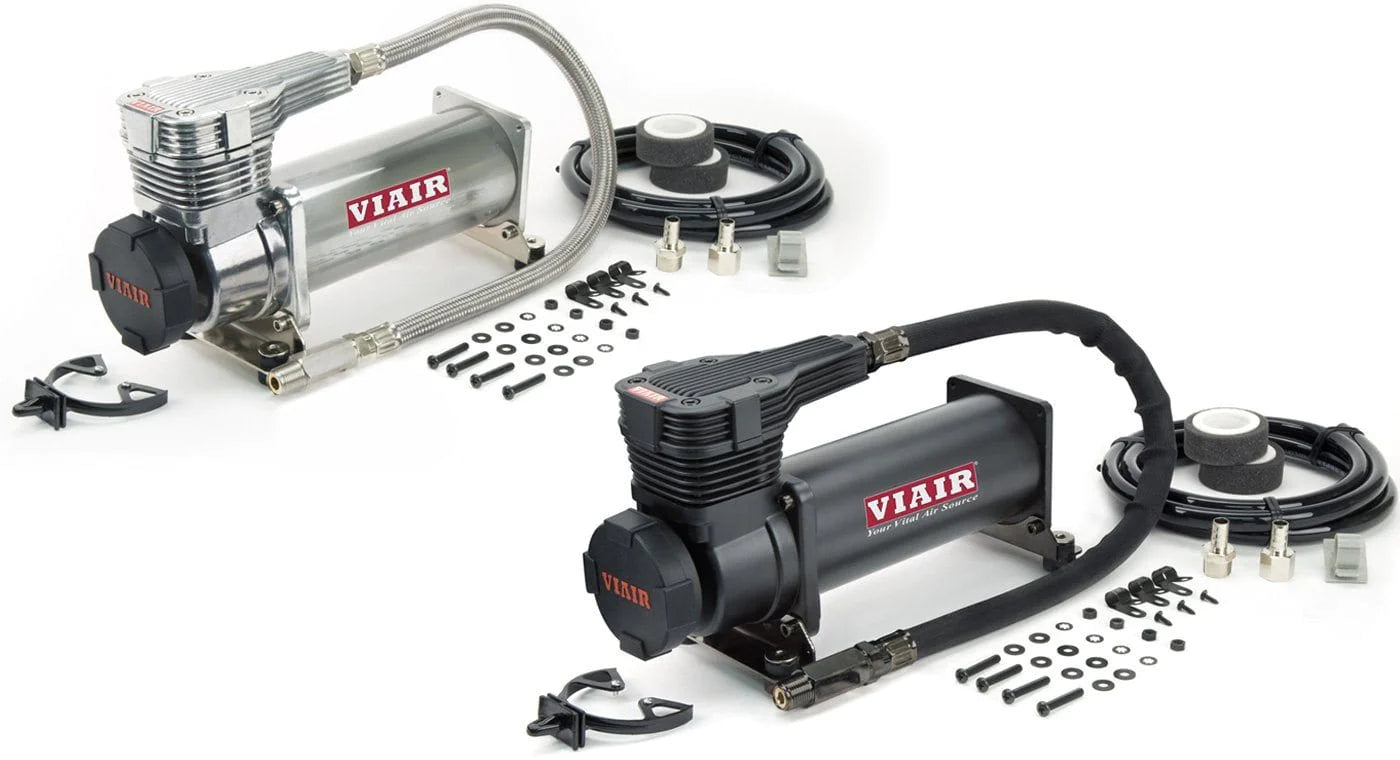

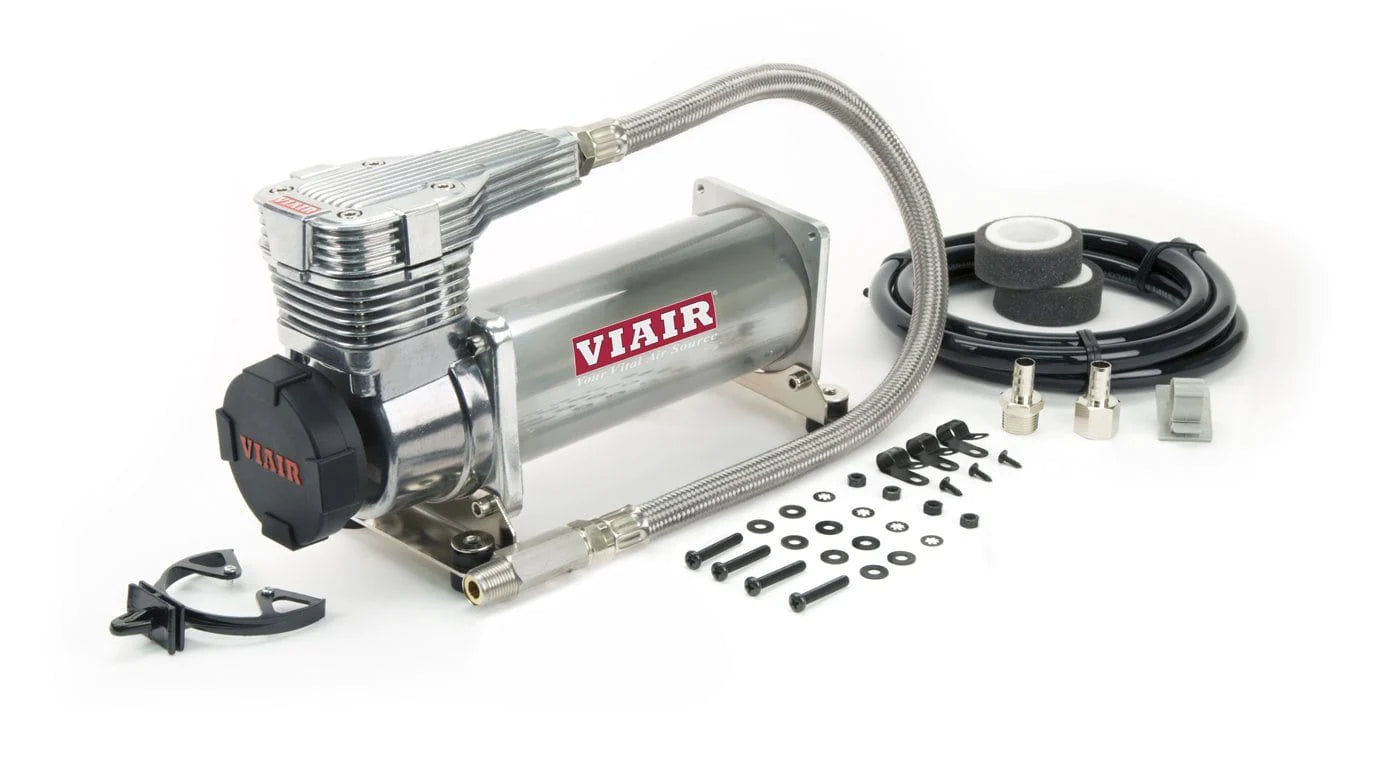

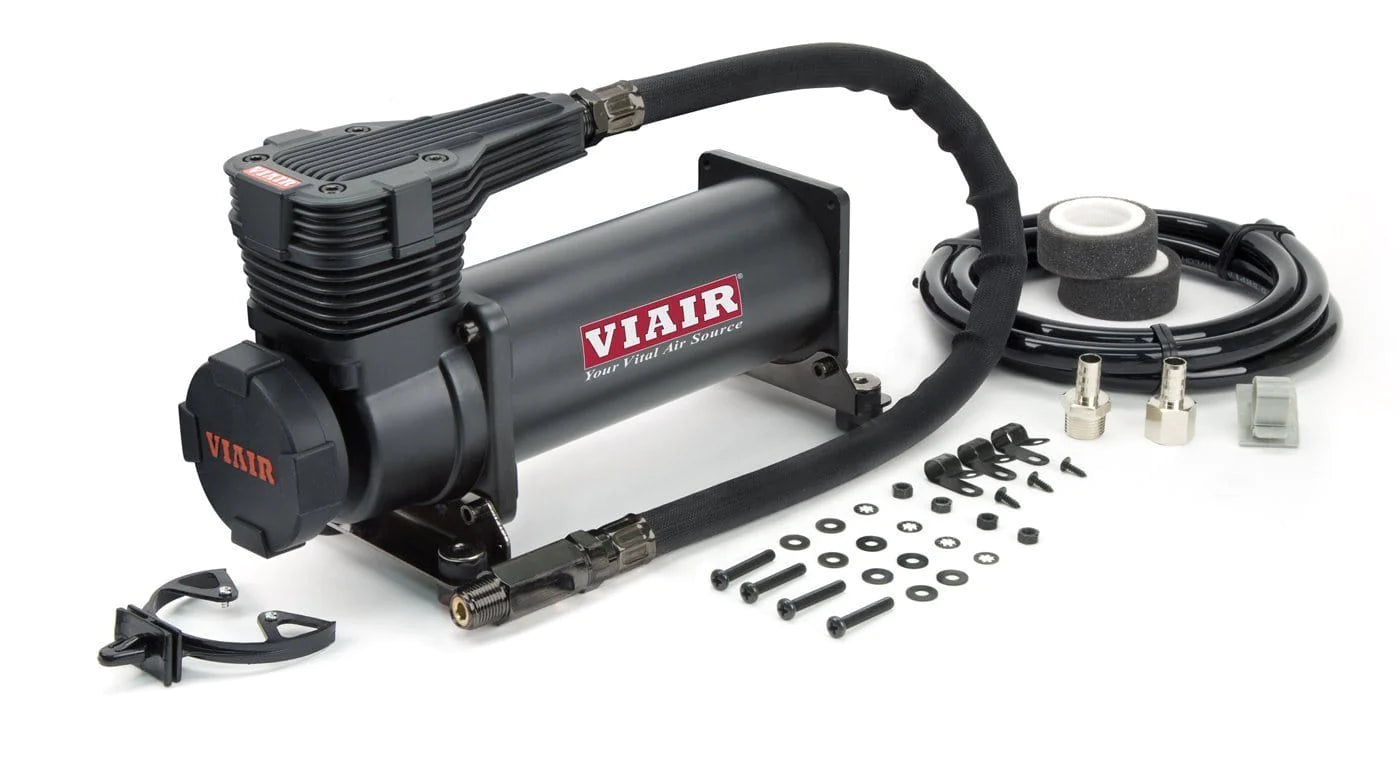

Viair 485C Air Compressor

The Viair 485C Air Compressor is the perfect choice for any pneumatic application. This powerful compressor can inflate a 2.5-gallon tank from 165-200 PSI in moments, and a 5-gallon tank from 165-200 PSI in seconds. With the included accessories and optional 40 Amp Air Compressor Wiring Kit, you can be sure that you will have the power you need to complete any job.

FEATURES

• Permanent Magnetic Motor for maximum efficiency
• Oil-free design ensures low maintenance
• High-performance PTFE piston ring for smooth operation
• Stainless steel valves for longevity
• Moisture and dirt resistant for enhanced durability
• Gearless direct drive motor for reliable performance
• Anodized aluminum alloy cylinder for lightweight construction
• Automatic reset thermal overload protector for added safety
• Mounting plates with vibration isolators to reduce noise
• Stainless steel 3/8" braided leader hose for flexibility
• Remote mount intake filter assembly for optimal air filtration
• Insulated wiring with connectors for easy installation

 SPECIFICATION

• Voltage: 12 Volts DC
• Max Amperage: 23 amps
• Maximum Duty Cycle: 100% @ 200 PSI
• Maximum Pressure: 200 PSI
• Max Tank Size: 5 Gallons
• CFM @ 0 PSI: 2.24 CFM
• Compressor Length: 10.63″ (270 mm)
• Compressor Width: 4.1″ (104.14 mm)
• Compressor Height: 6.44″ (163.57 mm)
• Weight: 11.10 lb (5.01 Kg)
