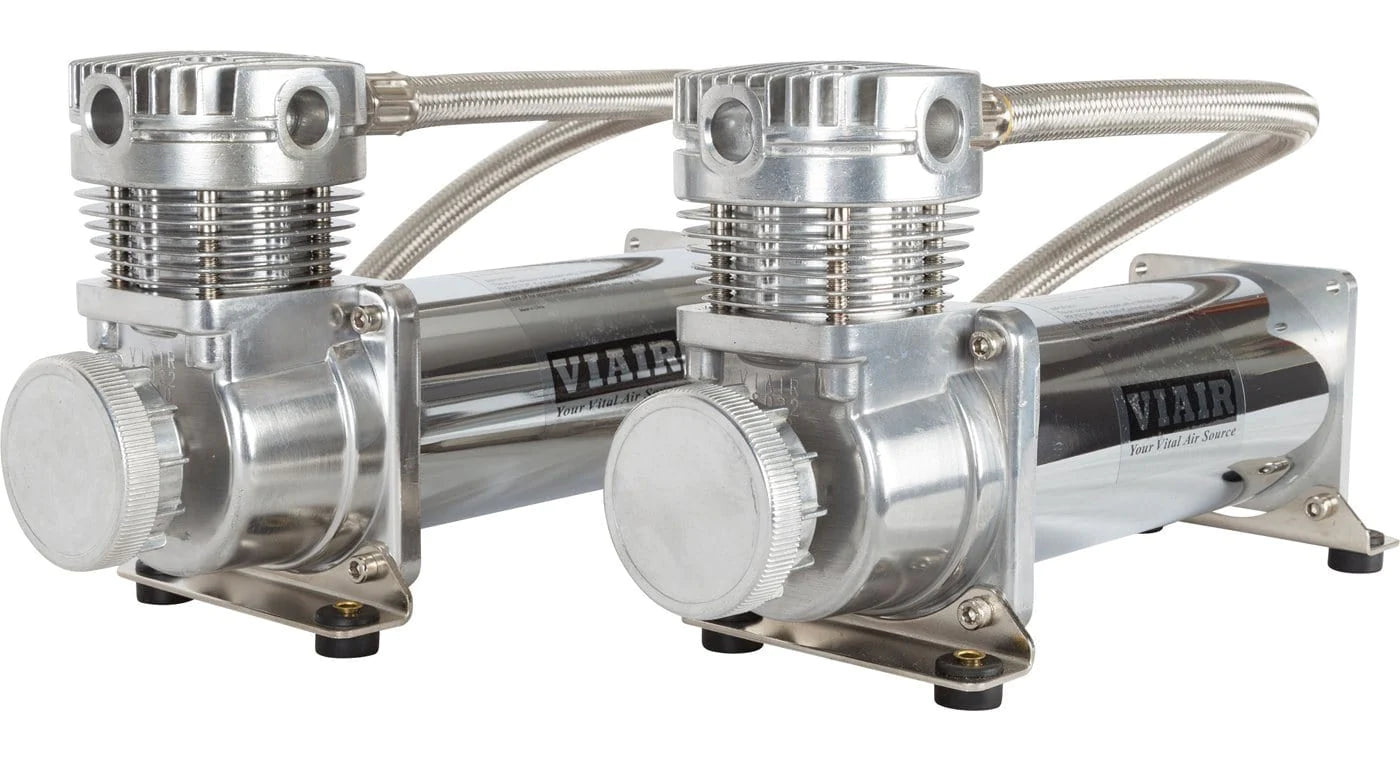

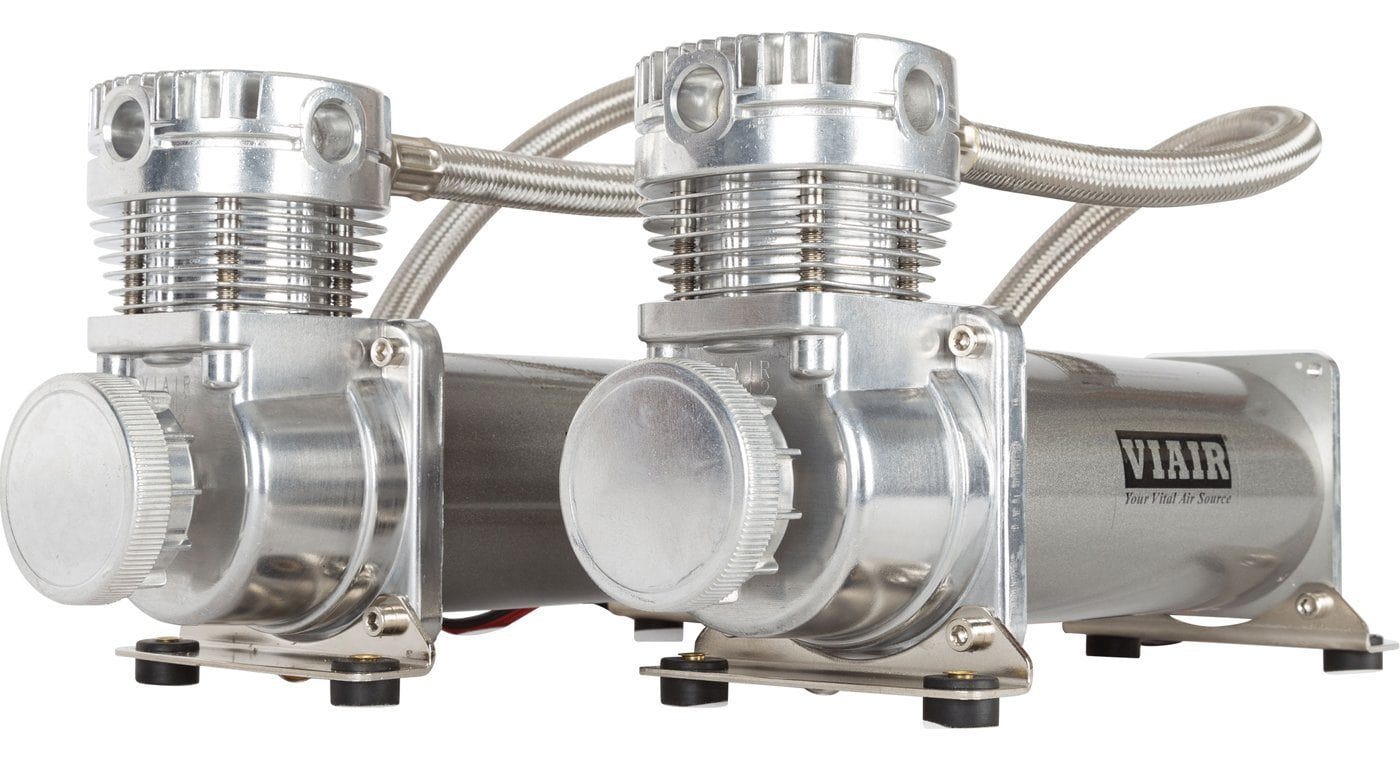

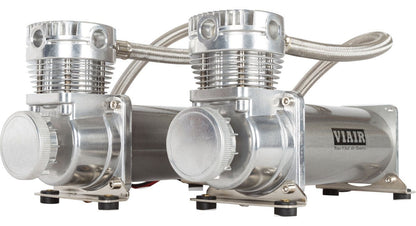

Viair 480C Dual Air Compressor Kit

The power-packed Viair 480C Dual Air Compressor Kit is ideal for any air suspension, inflation, or tool job you need done. With a compression rate up to 200 PSI, these compressors can run non-stop at 100 PSI and fill a 5-gallon tank in less than two minutes. Get the job done right and fast with the Viair 480C Dual Air Compressor Kit.

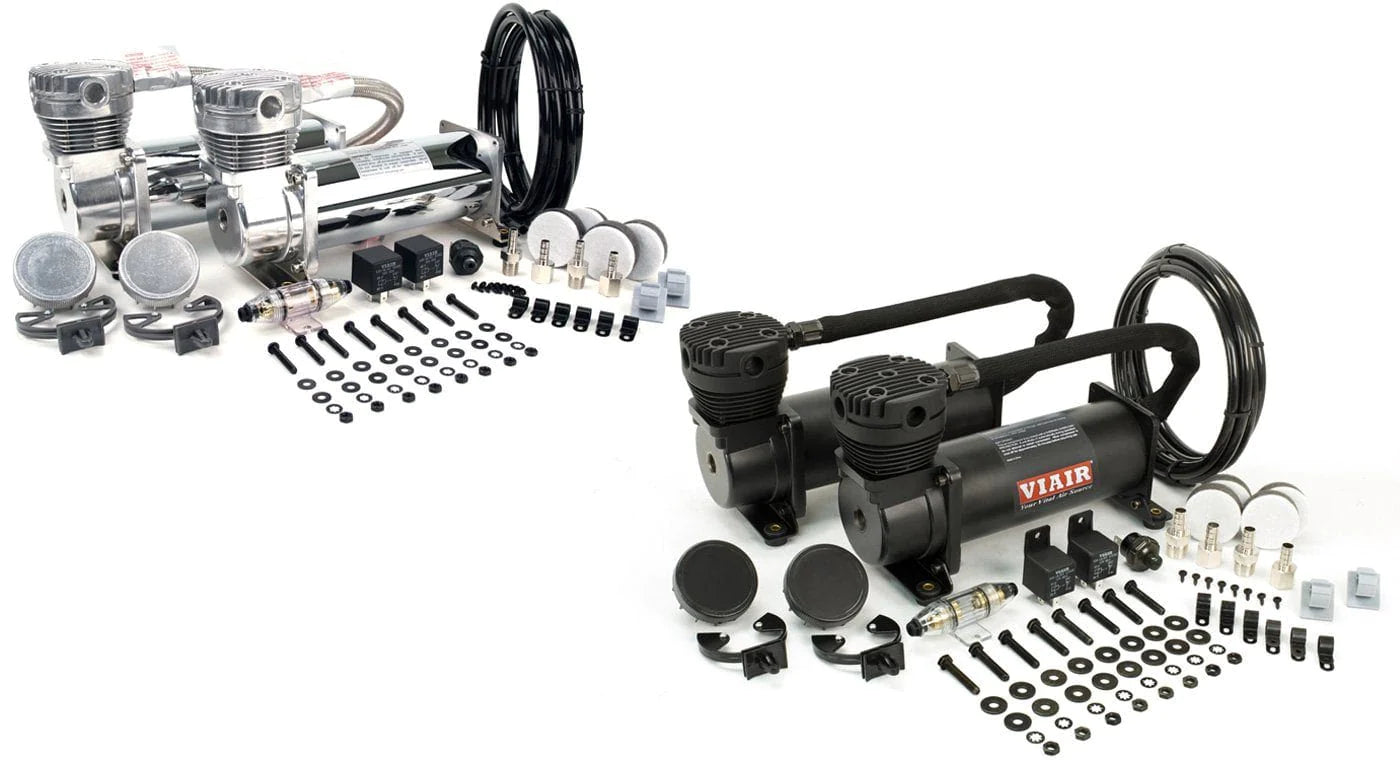

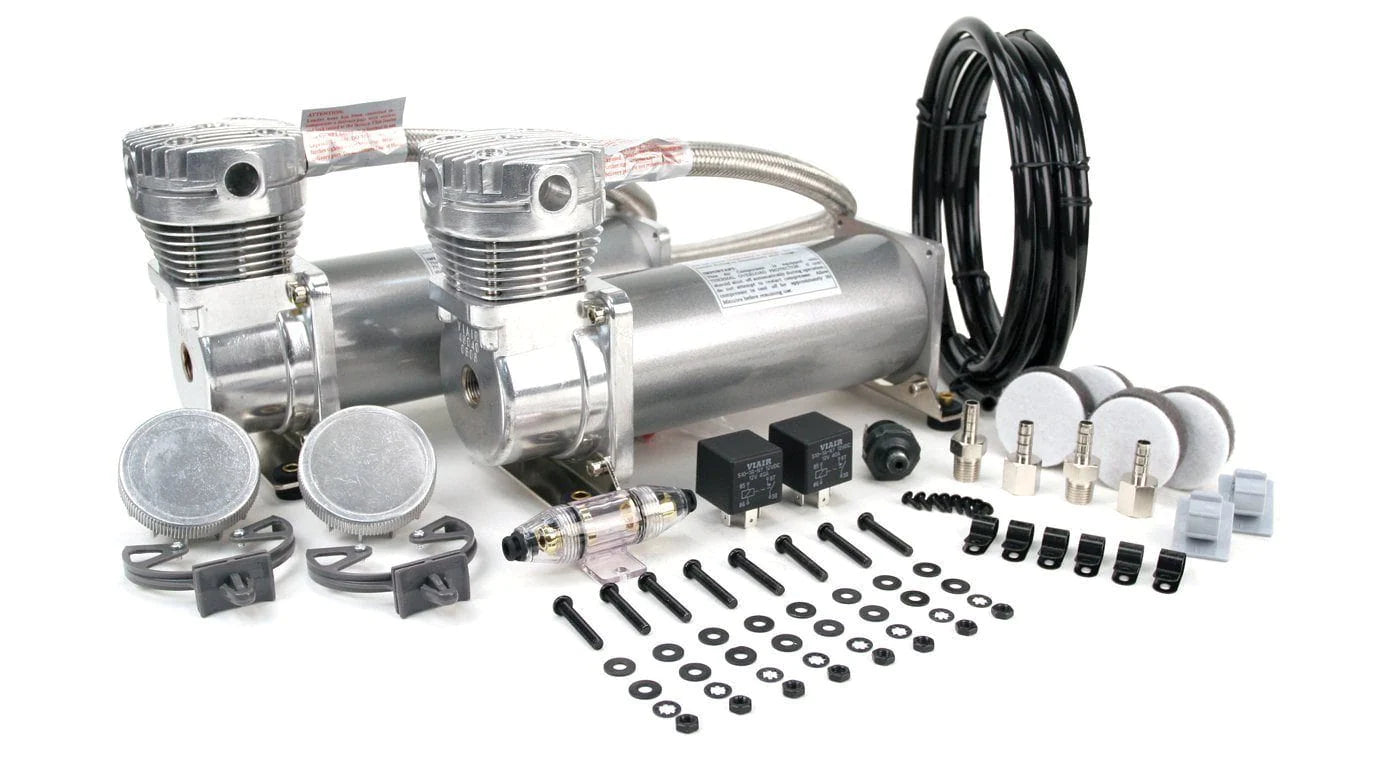

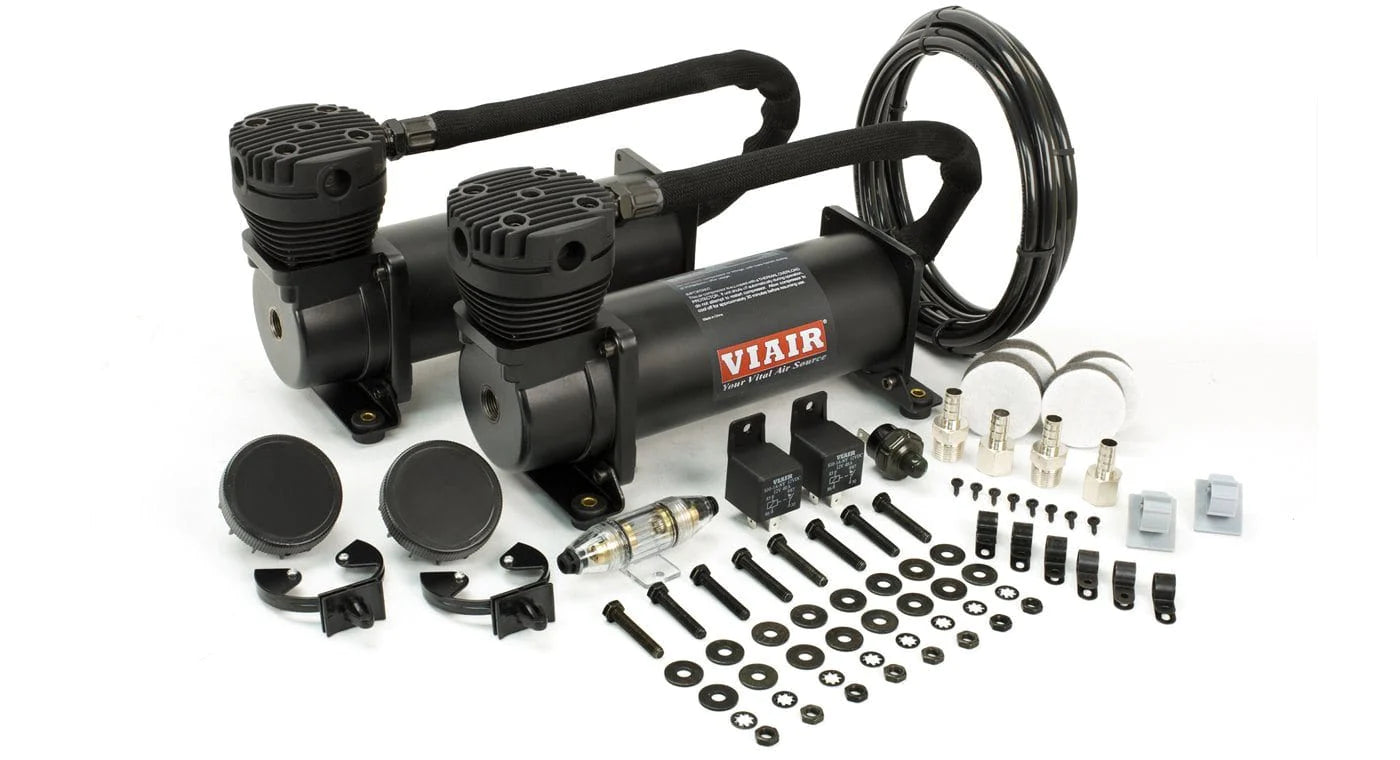

Ideal for vehicles with an on-board air system, the Viair 480C dual air compressor kit provides everything you need for a reliable installation. The remote-mountable intake filter system keeps the compressors safe from dirt and moisture, while the 40-amp relays and heavy-duty pressure switch activate the compressors at 165 PSI and deactivate them at 200 PSI. Get a stainless steel braided leader hose, insulated wiring, and everything else you need for a high-quality setup.

This compressor does come with the option to add our 40 Amp Dual Air Compressor Wiring Kit to it as well!

FEATURES

• Permanent Magnetic Motor
• Oil-less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Moisture & Dirt Resistant
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• Stainless Steel 3/8" Braided Leader Hose
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

SPECIFICATIONS

• Voltage: 12 Volts DC
• Combined Max Amperage: 44 amps
• Maximum Duty Cycle: 100% @ 100 PSI
• Maximum Pressure: 200 PSI
• Max Tank Size: 10 Gallons
• CFM @ 0 PSI: 3.53 CFM
• Each Length: 10.87″ (276.09 mm)
• Each Width: 4.2″ (106.68 mm)
• Each Height: 6.75″ (171.45 mm)
• Weight: 19.5 lb (8.85 Kg)
