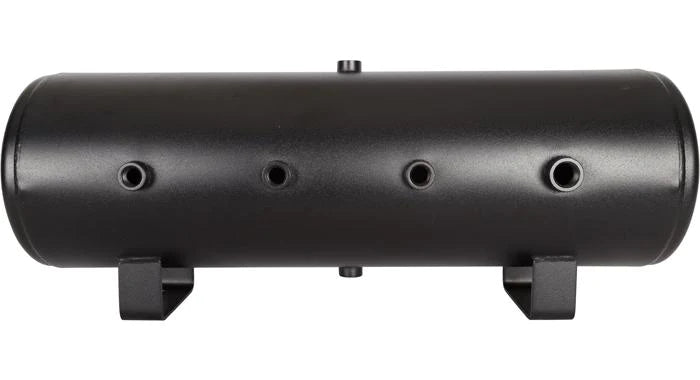

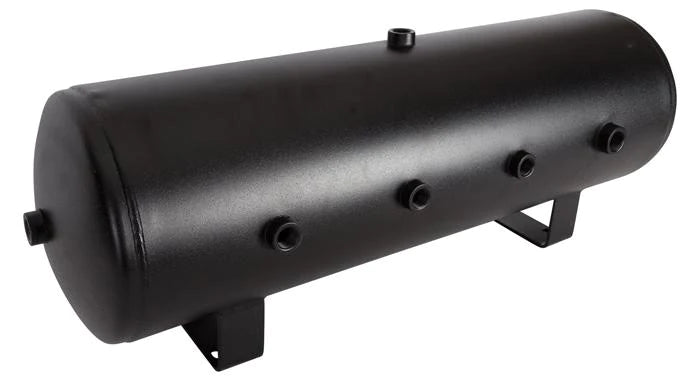

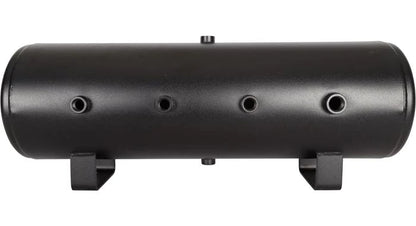

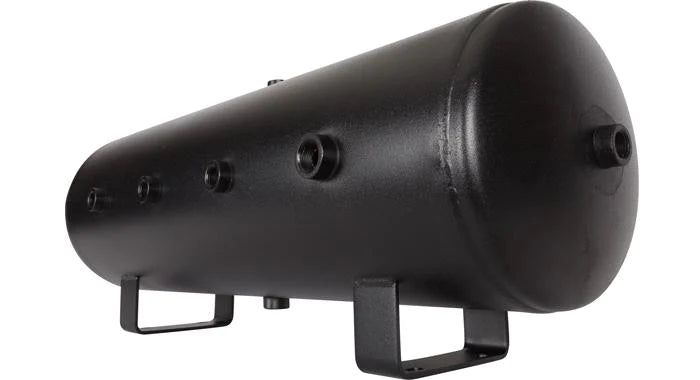

Air Tank 8 Gallon Steel 8 Port

This 8-gallon air tank is made in the USA with the highest level of quality control and meets all SAE J10 & FMVSS 121 specifications. To ensure longevity these tanks are finished with a semi-gloss black powder coat to resist corrosion and the inside of the tank is coated with a rust inhibitor.

• Powdercoated black finish
• Interior coated with a rust inhibitor
• Meets SAE J10 & FMVSS 121 specifications
• Eight NPT ports
• Made in the U.S.A.
• 2-Year manufacturers defect warranty

As an important safety precaution,  a safety blowoff valve should be installed with any air system. A safety blowoff valve is designed to keep the system from over-pressurizing and to prevent damage to other components. It is suggested to use a safety blowoff valve with a PSI rating between 25-35 PSI higher than the maximum pressure of the pressure switch.

For example, 150 PSI systems require a 175 PSI safety Blowoff and 120 PSI systems require a 150 PSI safety Blowoff.

• Volume: 8.5 gals (32.18 L)
• 1/2" NPT Ports: 7
• 3/4" NPT Ports: 1
• Mounting Hole Dimensions: 20" x 3.5"
• Burst Pressure: 750 PSI
• Working Pressure: 150 PSI
• Tank Length: 32.5″ (825.5 mm)
• Tank Diameter: 10″ (254 mm)
• Tank Height: 12.5″ (317.5 mm) (With Legs)
• Tank Weight: 32 lb (14.51 Kg)
