Air Tank 2 Gallon Steel 6 Port

This 2-gallon air tank is made in the USA with the highest level of quality control and meets all SAE J10 & FMVSS 121 specifications. To ensure longevity these tanks are finished with a semi-gloss black powder coat to resist corrosion and the inside of the tank is coated with a rust inhibitor.

• Powdercoated black finish
• Interior coated with a rust inhibitor
• Meets SAE J10 & FMVSS 121 specifications
• Six NPT ports
• Made in the U.S.A.
• 2-Year manufacturers defect warranty

As an important safety precaution,  a safety blowoff valve should be installed with any air system. A safety blowoff valve is designed to keep the system from over-pressurizing and to prevent damage to other components. It is suggested to use a safety blowoff valve with a PSI rating between 25-35 PSI higher than the maximum pressure of the pressure switch.

For example, 150 PSI systems require a 175 PSI safety Blowoff and 120 PSI systems require a 150 PSI safety Blowoff.

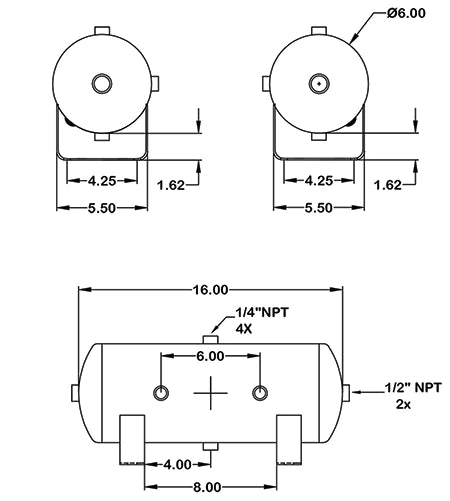

• Volume: 2 gals (7.57 L)
• 1/4" NPT Ports: 4

• 1/2" NPT Ports: 2
• Burst Pressure:  750 PSI
• Working Pressure: 150 PSI
• Tank Length: 17″ (431.8 mm)
• Tank Diameter: 6″ (152.4 mm)
• Tank Height: 8″ (203.2 mm)(With Legs)
• Tank Weight: 9.465 lb (4.29 Kg)
• Material: Steel
